Hazardous Area Enclosure
Benefits
EExD Zone 1 Protection
II 2G Ex d IIB+H2 T5 Gb IP66 ‐20 °C ≤ Ta ≤ +55 °C
II 2D Ex tb IIIC T100°C Db IP66
(Including instrument)
Suitable for all Kemtrak 007 series instruments
Complete control of instrument
The Kemtrak EX-D3 hazardous area enclosure allows the use of a Kemtrak 007 series process analyzer in potentially explosive atmospheres.
The primary function of an Ex d enclosure is to prevent the propagation of an internal explosion to the surrounding explosive atmosphere and protecting the internal components from the environment, humidity, dirt, dust or water.

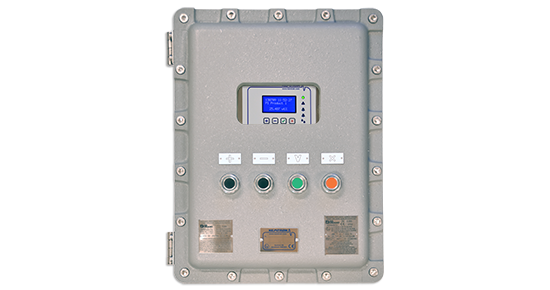

A window on the front of the enclosure is used to view the analyzer display and status lamps while four external push-buttons provide complete operation control of the instrument.
All Kemtrak products use fiber optics and maintenance free measurement cells with no electronics or moving parts to perform the measurement. Fiber optics are ideally suited for use in explosive environments as they only allow transmission of ultra-low power cold light.
